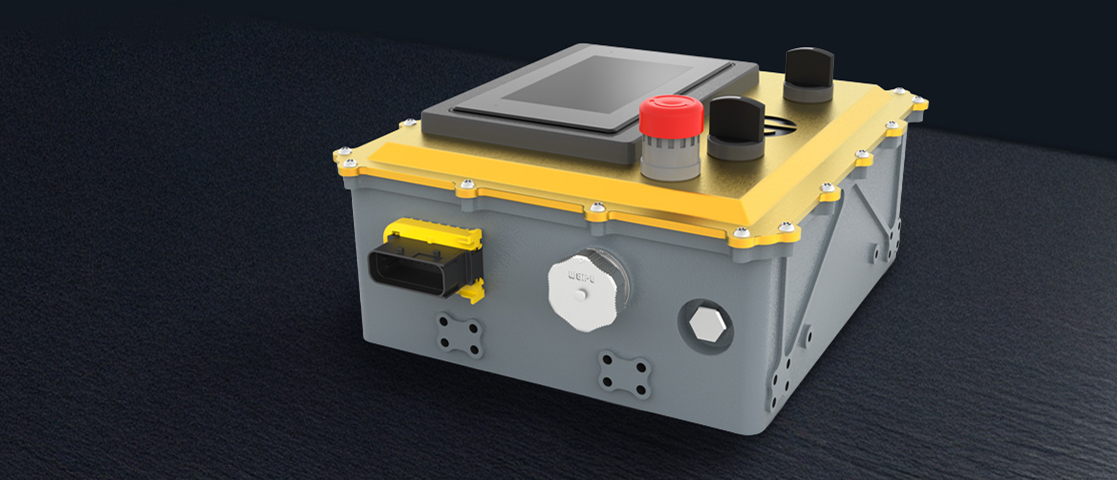

48V Drive Kit

Safely design interlock circuits of electric vehicles with the Safe Interlock Unit SIU

The kit contains

  • Inverter

  • DC/DC

  • Fuse box

  • Switches to

  • HMI

  • Data logger

The 48V Drivekit is an innovative solution developed as a kit to enable easy integration into various models. This modular system offers a flexible and powerful drive solution for electric vehicles, hybrid vehicles and other applications. With high efficiency and optimized performance, the drive system ensures perfect range and acceleration. Its easy installation and adaptability make it ideal for manufacturers and rental companies who want to equip their vehicles with the latest technology.

01.

Rapid development

Connect the engine and the batteries, configure the inverter and the test phase with your vehicle begins.

02.

Flexible component selection

The 48V Drive Kit is compatible with a wide range of batteries, motors and their manufacturers.

03.

Simple customization

On request, we can ensure compatibility with other manufacturers and adapt the design and control system.

Tech Specs

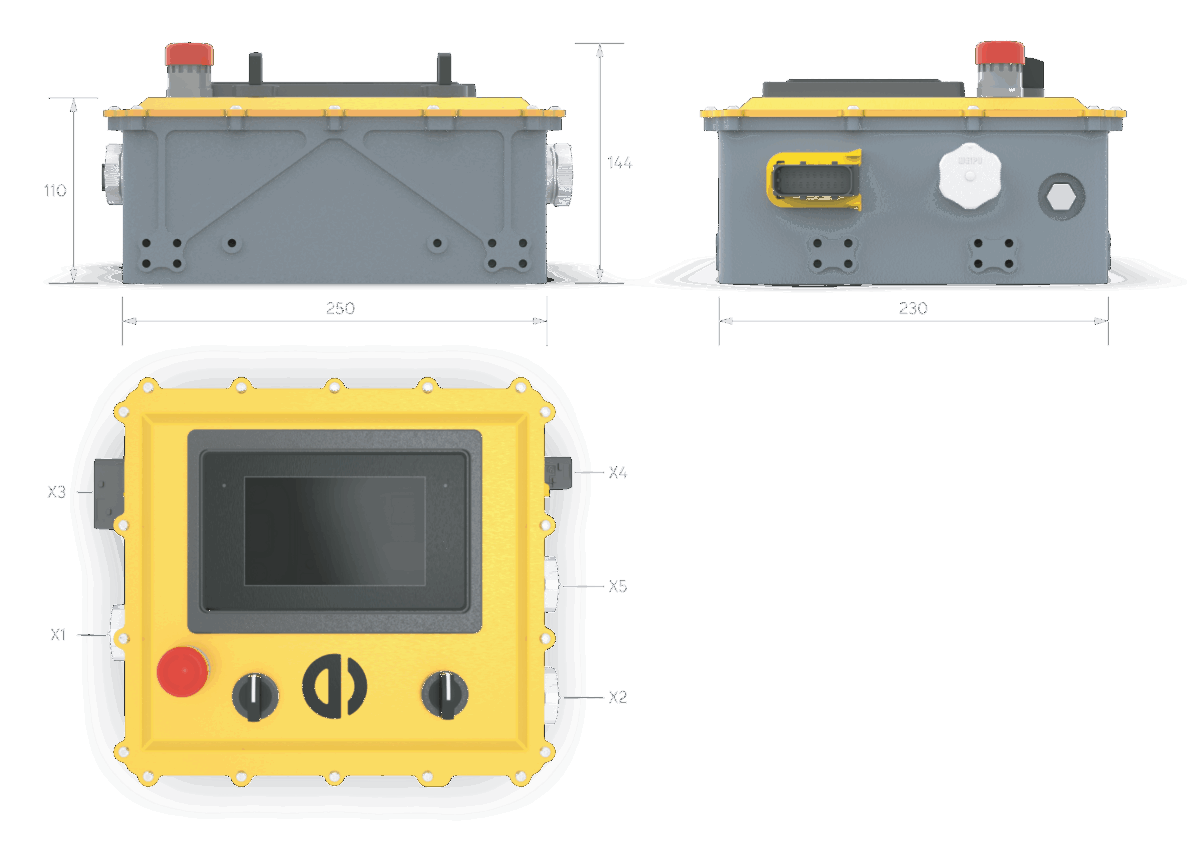

Technical Drawing

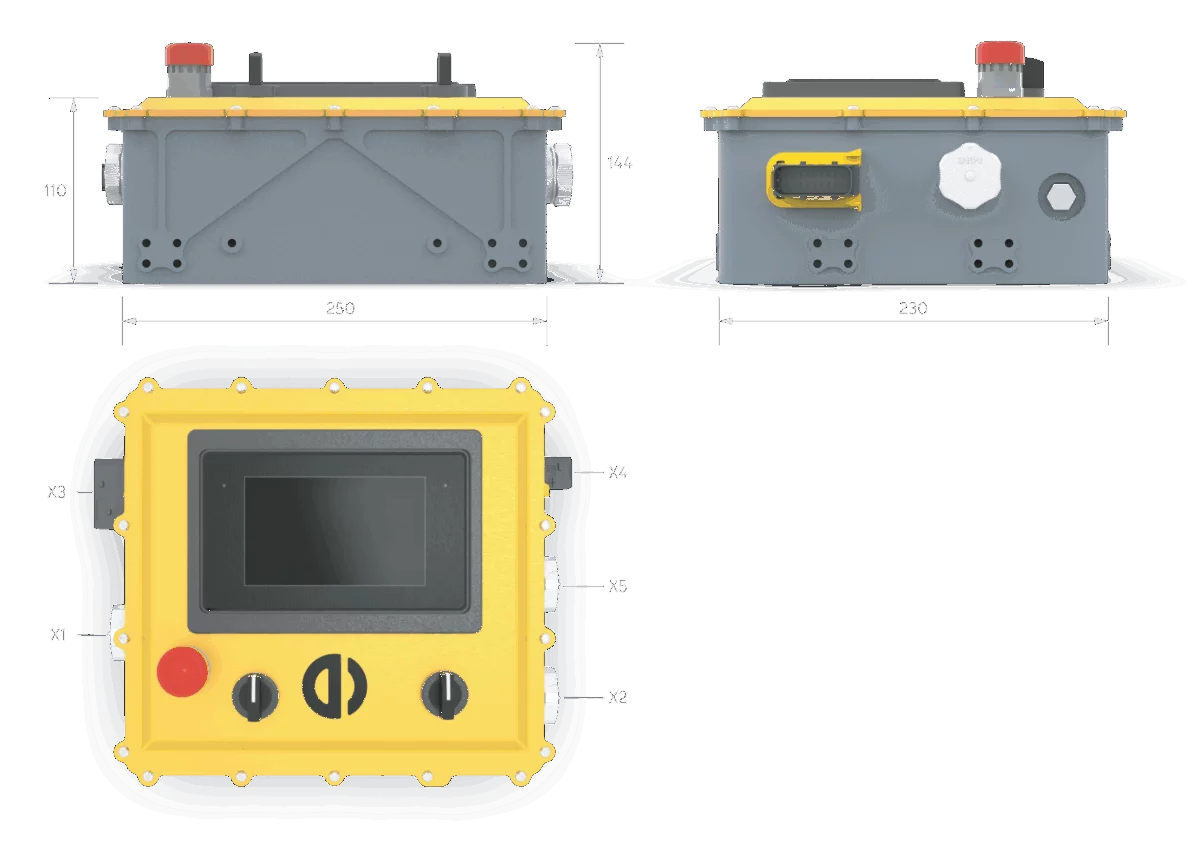

Vermassung 48V Kit

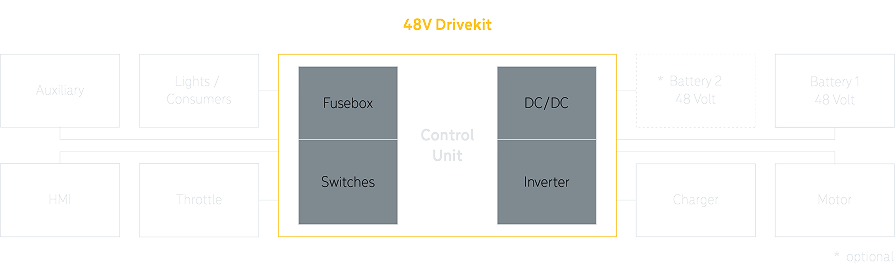

Functional diagram

Motor

  • Power output: 1 to 8.5 kW

  • Compatible suppliers: Heinzmann, Heidrive, Benevelli, Engiro etc.

  • Implementation of additional suppliers on request

Battery

  • Energy: 2.5 to 15 kWh

  • System voltage: 48V

  • Compatible suppliers: Battery Labs, EcoVolta, Varta, Invenox etc.

  • Implementation of additional suppliers on request

Charger

  • 0.4 kW / 1.2 kW / 3.3 kW single-phase

  • Onboard or offboard option

Control unit

  • 10 kW inverter integrated

  • 370W 48V/12V DCDC integrated, 24V optional

  • Integrated inputs on the control unit: key switch, direction switch, emergency stop switch, light switch, horn, etc.; fully customizable

  • Additional inputs: Throttle valve, 0..5 V redundant

  • Outputs: lights, auxiliary consumers, fully customizable

  • Integrated display: 5″ diameter with touch functionality, fully customizable. Primary screen with speed and charge status, secondary screen with detailed status and error information

Interface description

(X1_Input) Battery 1
Variations 2.5 to 15 kWh

(X2_Input) Battery 2
Variations 2.5 to 15 kWh

(X3_Input) Charger
Variations 0.4 to 3.3 kWh

(X4_Input) Throttle
Variations

(X5/X6_Output) Auxiliary
Lights, horn, 12/24V:Consumer

(X7_Output) HMI
Variable functions

(X8_Output) Motor
Variations 1 to 8.5 kWh

Download the technical data now

Start PDF download

Are you interested in switching to e-mobility quickly? We will be happy to advise you on the integration of our kit.

Take the opportunity to equip your vehicles and machines with an innovative drive system and benefit from our current promotion.
