PDU L28A

Type designation

L28P

Specifications

  • 400V (96V optional)

  • Optional pre-charging circuit for 96 V architecture

  • 2x HV battery input (up to 5 optional)
  • 8x parallel outputs, fused on HV+

  • DC charging contacts integrated

  • Integrated interlock & insulation measurement

  • Safe measuring points for manual voltage measurement
  • Operating temperature -30 °C to +45 °C

  • Individual sheet metal housing with dimensions: 530x310x117 mm (without mounting plate)

  • Weight: 12.0 kg

  • Your Content Goes Here

Technical Drawing

Technische Zeichnung einer gelben Hochleistungs-Power-Distribution-Unit (PDU-L28A) mit Anschlussfeldern und schematischer Stromlaufübersicht.

Norms and Regulations

  • ISO 6469-3:2018 compliant

  • ISO 20653 IP65

Download the technical description of the PDU L28A

Download PDF

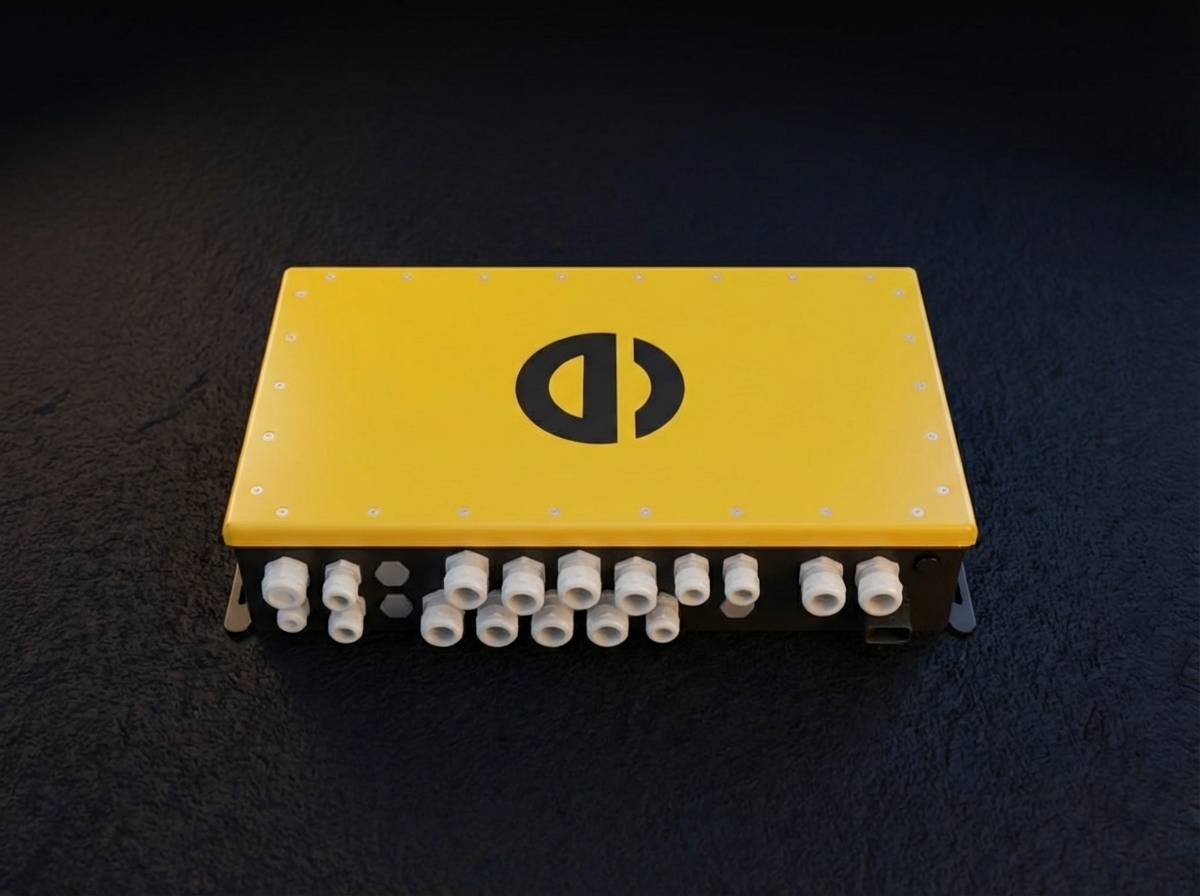

Gelbes und schwarzes Power-Distribution-Modul PDU L28A mit mehreren Hochstrom-Anschlussports und robustem Gussgehäuse.
