Power Distribution Units

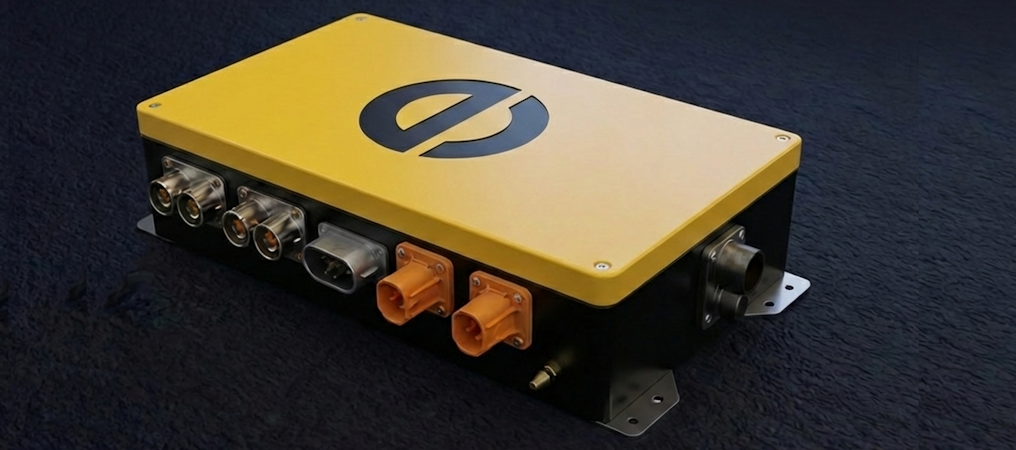

For safe and efficient power distribution in high-voltage vehicles with a wide range of functions. Our PDUs can be used for almost any transport and machine area – configurable with a DC bus controller for functions such as current and temperature measurement, pre-charging and discharging functions and diagnostic services in accordance with industry standards.
01.
Reliable and safe power distribution
We provide support in the design of electrical safety systems and in the calculation of fuse and contactor coordination.
02.
Intelligent real-time load monitoring
Precise measurement of current, voltage, and temperature per output, including automatic alerts to prevent overload and failure.
03.
Completely customizable
All functions and requirements can be individually configured. Power, size, number of inputs and outputs and much more.
PDU product variety
These variants show the wide range of possibilities for configuring a PDU. The corresponding connections and functions are implemented based on the needs of the customer or the vehicle.
PDU M15P
| Overview |
|---|
| 400V |
| Standard housing |
| 1x input (up to 3x optional) |
| 5x output |
| 422x286x111 mm(WxLxH) |
| 9kg |
PDU L28A
| Overview |
|---|
| 400V (96V optional) |
| sheet metal housing |
| 2x input |
| 8x output |
| 530x310x117 mm(BxLxH) |
| 12kg |
PDU L38A
| Overview |
|---|
| 800V (400V optional) |
| Standard housing |
| 3x input |
| 8x output (up to 10x optional) |
| 600x310x111 mm(WxLxH) |
| 12kg |
Technical description
(generalized)
Technical Drawing
Example drawing of a PDU. All components are individually configurable.
Specifications
Intelligent control
With the DC bus controller gives the conventional Power Distribution Unit (PDU) an intelligent component for using various functions:
OPTIONS
Plug connections
Thanks to a wide range of options for plug connections, each PDU can be adapted to the application and product maturity. Cable glands are well suited for an early stage of development and simple implementation of HV cabling. Plug-in systems are advantageous if no complex assembly steps need to be carried out during production.
Standard and EMC cable glands
- Various connectors from TE, Amphenol, Rosenberger, ODU or Hirschmann
individually according to requirements
Housing
Every area of application and every batch size has a housing shape that is ideally suited to the situation. We work with our suppliers to produce cast, sheet metal or milled enclosures to suit the requirements.
Sensors & actuators
Thanks to specifically selected sensors and actuators, the fuse box becomes a smart, highly integrated element of the drivetrain. Durot Electric is the ideal supplier for the implementation of safety-related functions in particular.
Norms and Regulations
Our products meet the highest safety and reliability requirements: they comply with relevant international standards and offer additional protection up to IP6K9K or other individual additional validations on request.
PDU for various areas of application
The PDU was developed for use in high-voltage systems in vehicles vehicles and machines. It ensures safety, efficiency and modularity in the electric drive train.
The high-voltage interlock is an important safety element in the PDU, which acts as a protective function and switches off the voltage in the entire circuit if necessary.
